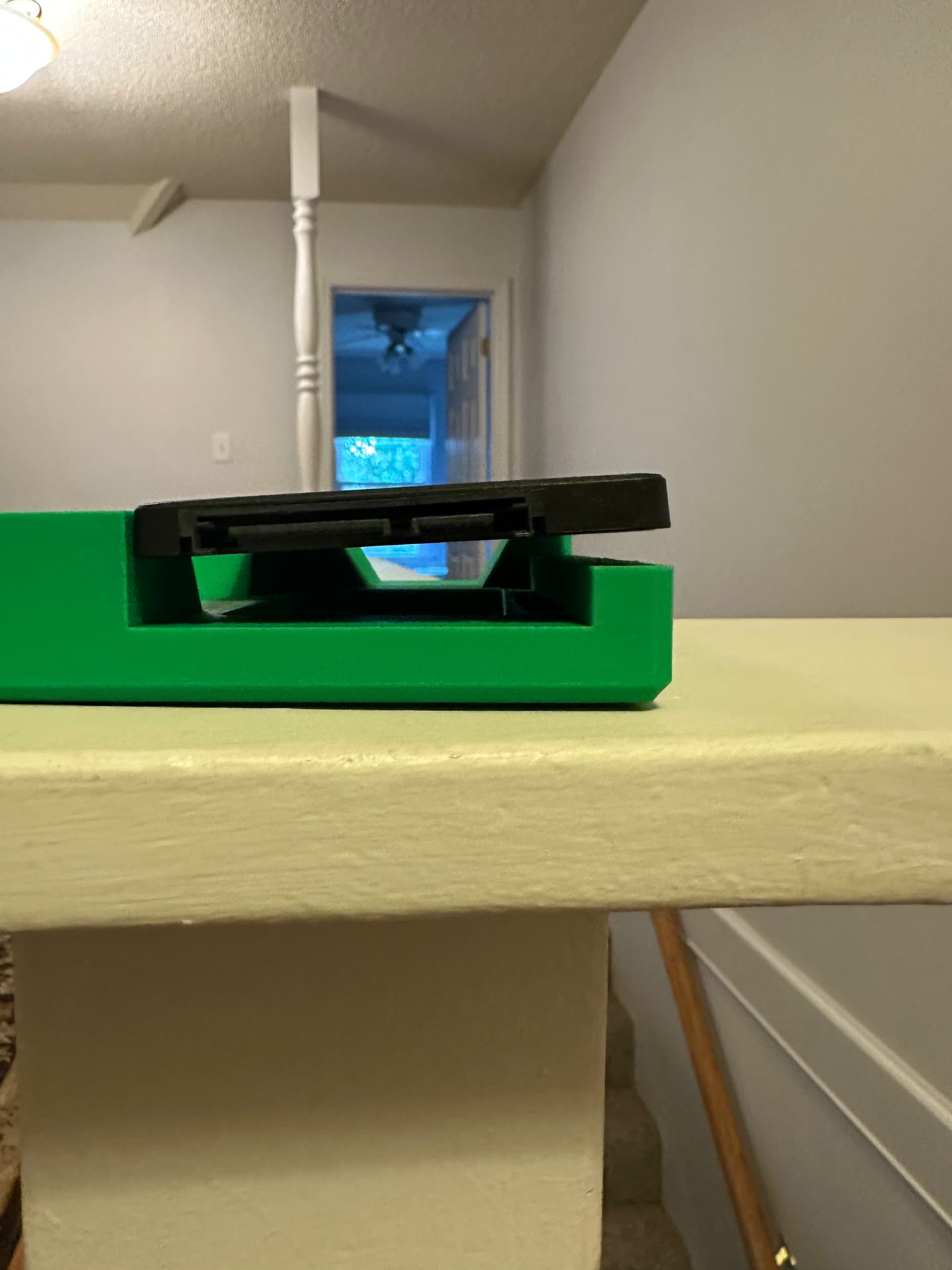

I’m not sure if I’m doing something wrong or if the part is just designed this way, but I printed two SSD caddies and noticed each one only has two screw holes for mounting the SSD. When I attach an SSD, it sits crooked.
Is this an issue with my print, or is it a design flaw in the caddy?
I’ve tried mounting the SSD both ways (facedown to line up the connector), but I still can’t get it to connect properly to a slot in my HL15.
Has anyone here installed these caddies before and can point me in the right direction?
Update: Turns out I had the SSD upside down. Once I flipped it, everything lined up fine and it slid right in. Leaving this here in case someone else runs into the same “crooked SSD” problem.
1 Like
Wait, you mean to say those images on the Printables page wasn’t just people trying to show-off their brands/capacities? Crazy!
Yep, lesson learned. Turns out those Printables pics weren’t drive centerfolds, they were actual instructions in disguise. Guess I was too busy admiring the branding to notice the orientation.
Next time I’ll know: if it looks dumb but it works, it’s not dumb. Thanks for the laugh — and hey, @Akshunhiro, if you already knew that, you must have spent way too much time staring at other people’s SSDs.
